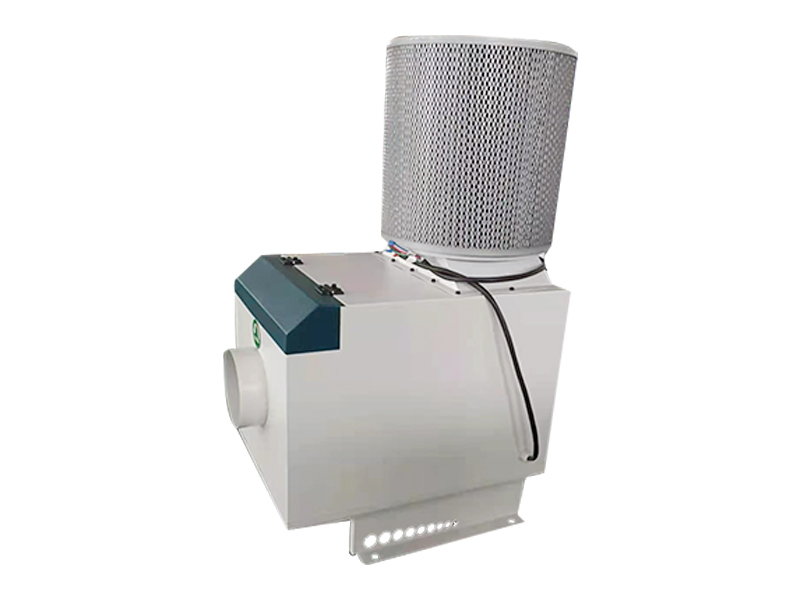

Product Introduction
Mechanical oil mist collector is an industrial environmental protection equipment. It is mainly installed in machines, CNC machining centers, grinders, lathes and other machines. It is a professional equipment to collect and purify the oil mist, smoke and other environmental pollutants generated in machining, and absorb the oil mist in the machining chamber, so as to purify the air and protect the health of workers.
The oil mist collector is mainly used in the following places:
Machinery Factory (including CNC lathe, machining center, cylindrical grinder, gear grinder, EDM machine tool, grinder, lens grinder, die casting machine and other hardware machinery factories)
Product features
1. The product has the advantages of high filtration efficiency, durability
2. Easy installation: each collector can be directly installed on the machine tool and support, which is convenient for disassembly and assembly.
3. The maintenance is simple, safe, without spark and high voltage hazard. Even if the dust collection hose is connected, the filter screen can be replaced. The fan impeller is not exposed. It is very safe during maintenance
4. It can capture mist and dust, iron filings generated by surface grinder and centerless grinder, and can be used for various machine tools or cleaning equipment such as electric cremation machine tool, CNC machine tool and high-efficiency gear processing machine tool.
5. The air, water vapor and oil fume inhaled from the suction inlet are purified into clean air and discharged through the flow equalizing plate and level 1-3 filter screen

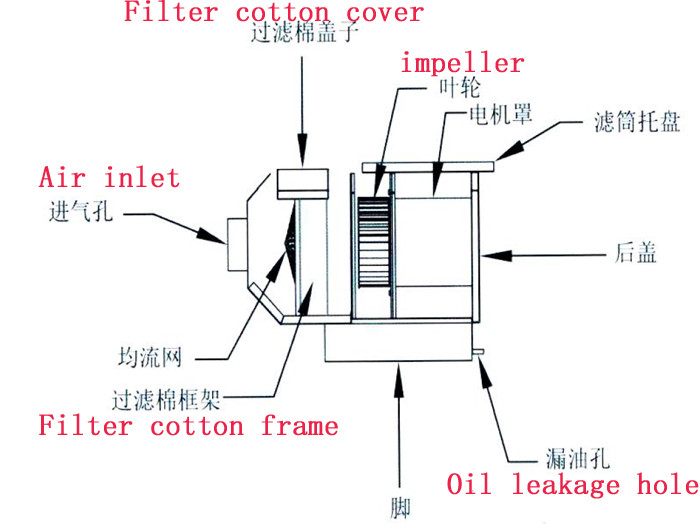

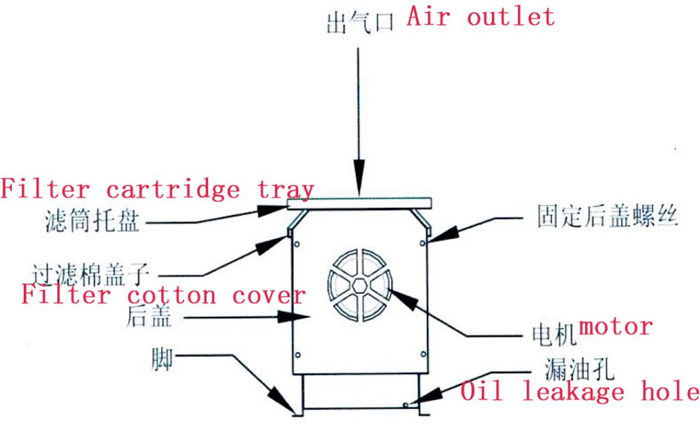

Filtration process
Reduce the resistance of air and evenly diffuse and guide the air flow
Primary filtration: Filtration of large particles in oil, water and smoke
Secondary filtration: Filter fine particles
Tertiary filtration: Filter the fine particles that cannot be filtered at level 1-2
