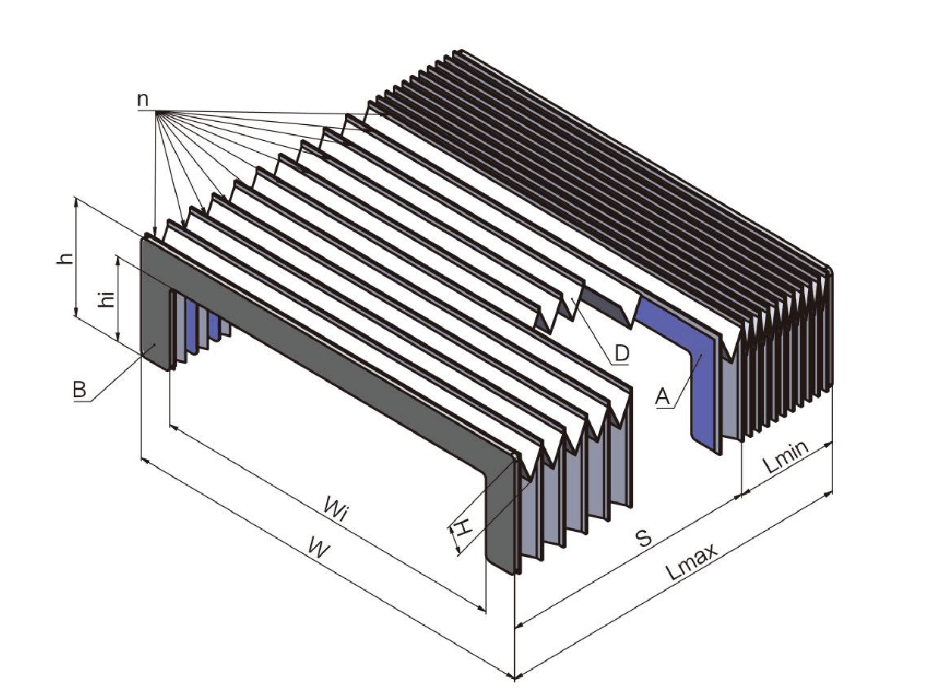

Parameters
Fold height: the unfolded length
Cloth thickness: the thickness of fiber cloth is 0.3mm, 0.4mm and 0.6mm
Thickness of reinforced plate: the thickness of PVC and other supporting plates is 0.6mm, 1mm, 1.5mm, 2mm, 3mm, etc
Stretching: the maximum distance from the moving end of the customer's machine to the fixed end is 50 meters
Compression: the minimum distance from the moving end of the customer's machine to the fixed short is 5 mm
Stroke: stretch minus compression equals stroke
Outer width: the width of the accordion bellows cover
Outer height: the height of the accordion bellows cover
Operating speed: the maximum operating speed of the accordion bellows cover can reach 100m/ min
High temperature resistance: the maximum instantaneous temperature can reach 900 ℃

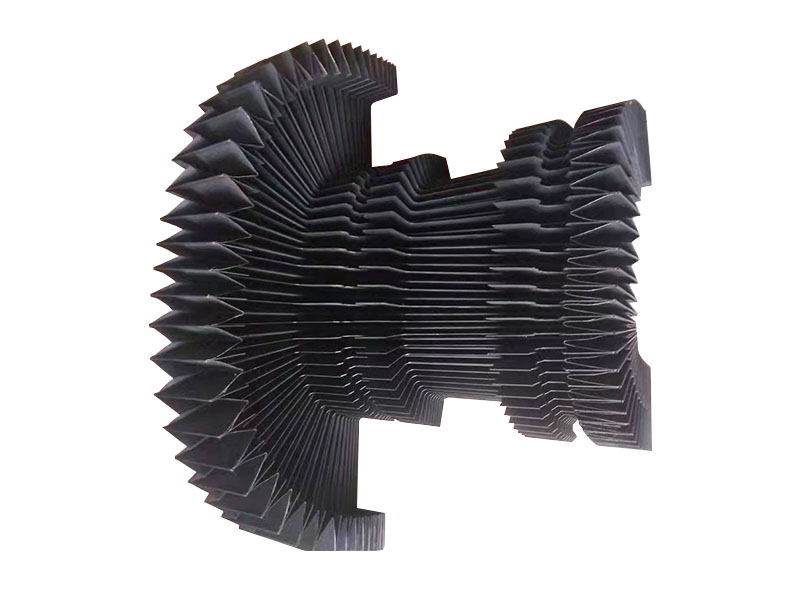

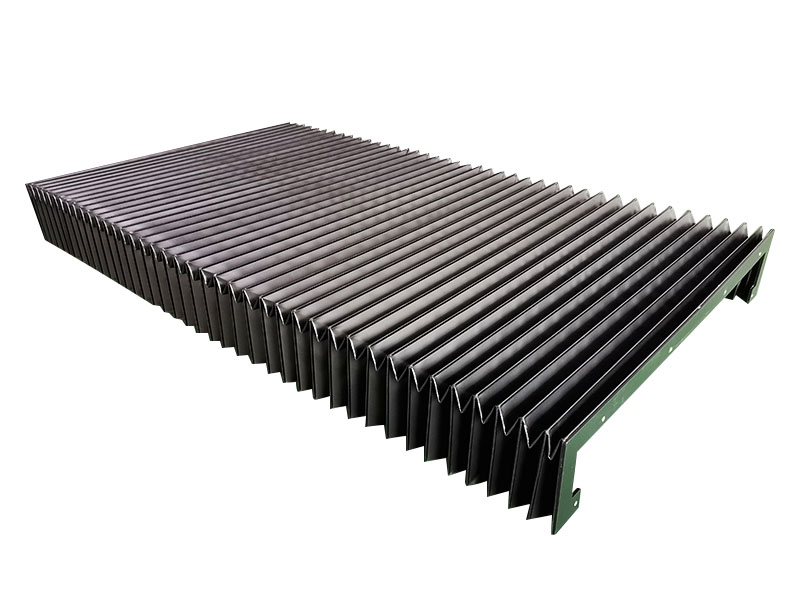

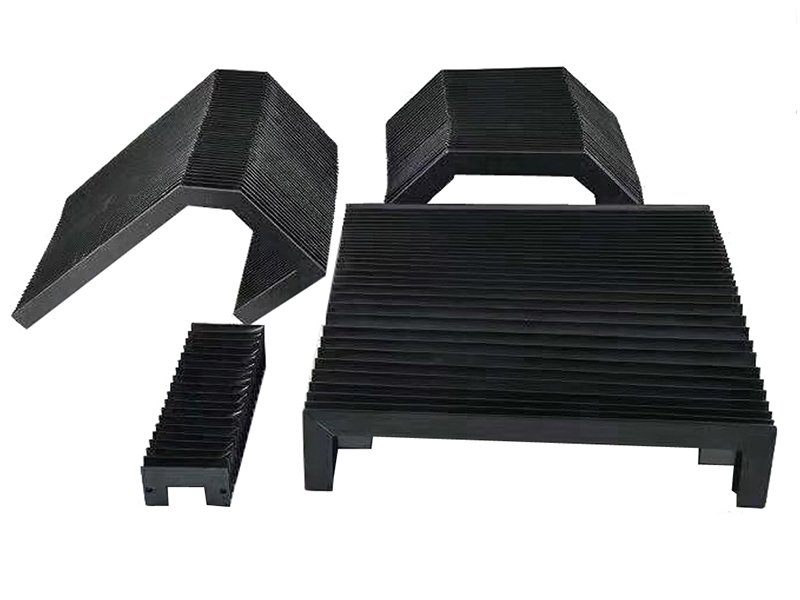

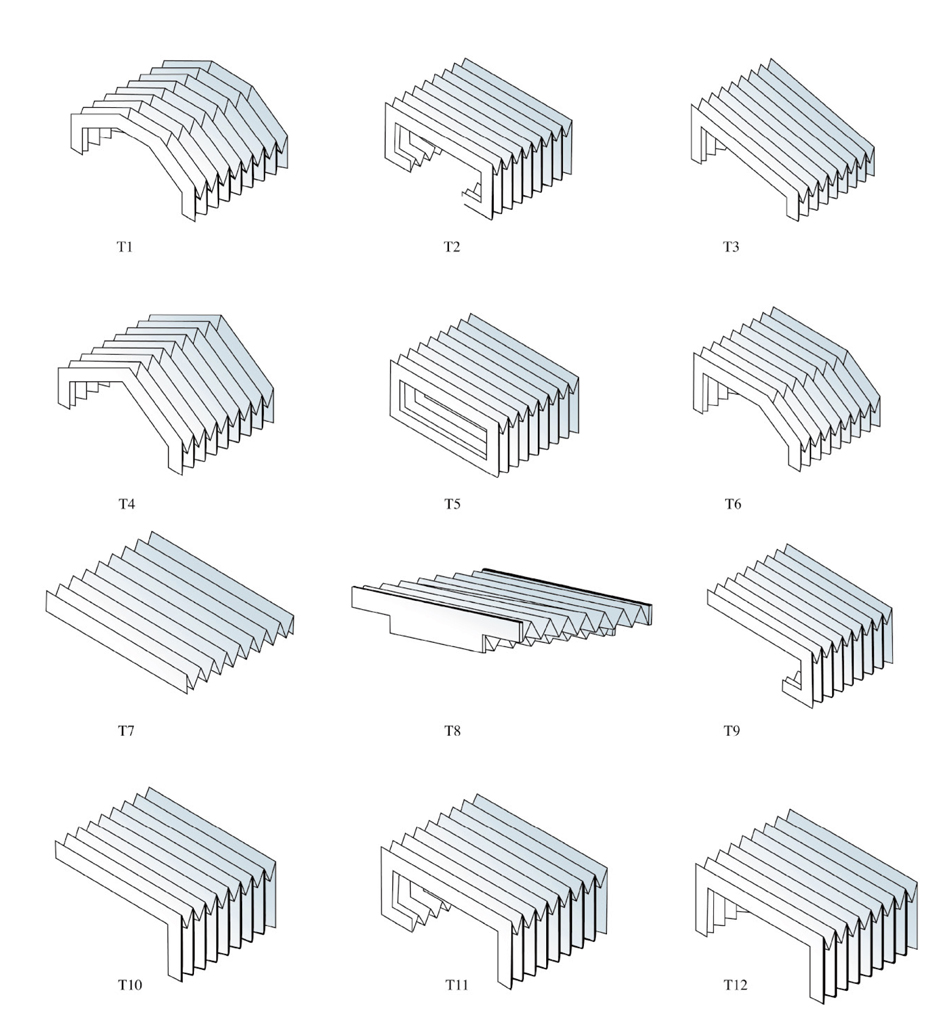

Common shapes
Main functions:
Accordion bellows covers have smooth surface, regular shape and beautiful appearance. Therefore, it not only provides practical protection for your machine tool, but also adds more visual beauty to the machine tool, and improves the overall value of the machine tool.
Accordion bellows covers adopts German advanced technology. It is externally made of German nylon cloth and internally supported by PVC plate. It is resistant to oil, corrosion, hard impact without deformation, long service life, good sealing, stable walking, durability and other characteristics.
It is mainly used to protect various confidential mechanical parts and prolong the service life of important mechanical parts and machinery.
