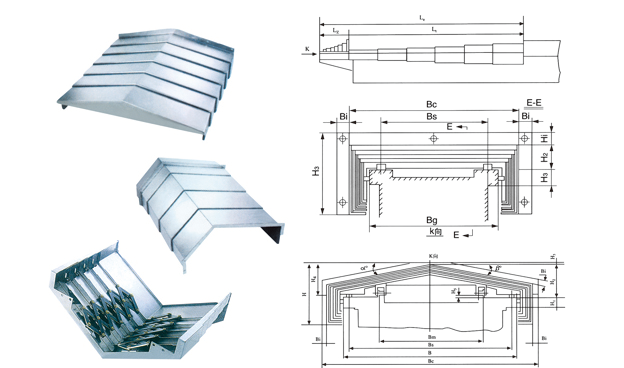

Parameters
Material: A3 steel plate stainless steel
Stretching: the maximum distance from the moving end of the customer's machine to the fixed end is 50 meters
Compression: the minimum distance from the moving end of the customer's machine to the fixed short is 5 mm
Stroke: stretch minus compression equals stroke
Outer width: the width of the guard profile
Outer height: the height of the outer star of the protective cover
Operating speed: the maximum operating speed of the protective cover can reach 60m/ min

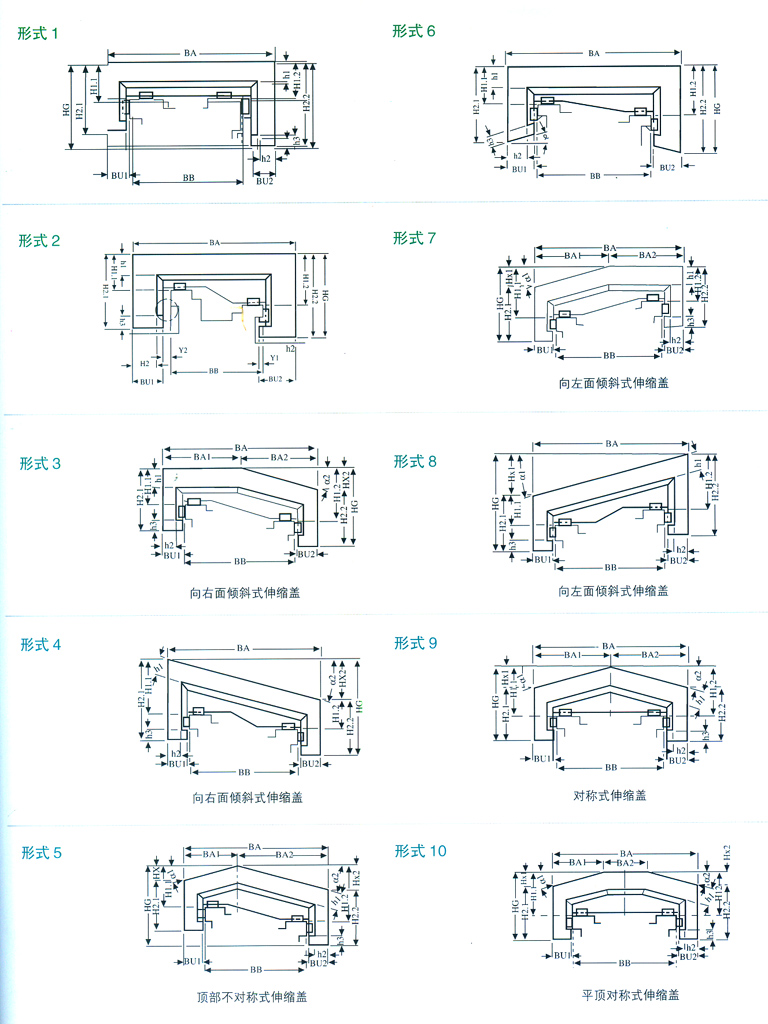

According to customer drawings
Function
The telescopic steel covers are made of steel plate. It is a traditional protective form of machine tools. In this field, the telescopic steel covers are widely applied.
It can effectively prevent the entry of chips and other sharp objects. It can also effectively reduce the infiltration of coolant through certain structural measures and appropriate scraping plates. Our steel telescopic guide rail guards can
To meet the increasing requirements of modern machine tools for high technology, correct installation position and high running speed.
★ it is suitable for high-speed machine tool guide rail protection, which is stable and free of vibration and noise. (the speed can operate normally at 80m/min)

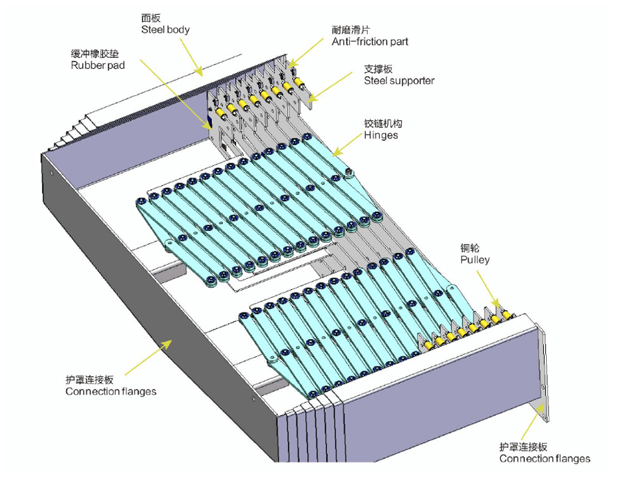

★ each section of guard plate shall be opened in parallel at the same time and retracted in parallel at the same time, so as to operate freely.
★ it will not make the guard plate disjointed, with impact sound, which is beautiful and improves the service life of the guard plate.
★ a layer of stainless steel cover plate is added on the basis of the original sealant strip to prevent iron filings from burning the rubber strip into the rail surface and damaging the guide rail.
★ this device not only protects the service life of the guard plate, but also ensures the precision of the machine tool.
