It is suitable for transmitting various types long curly chips, ball-shape chips, block-shape chips, copper chips, aluminum chips, and stainless, rubber, nylon chips.

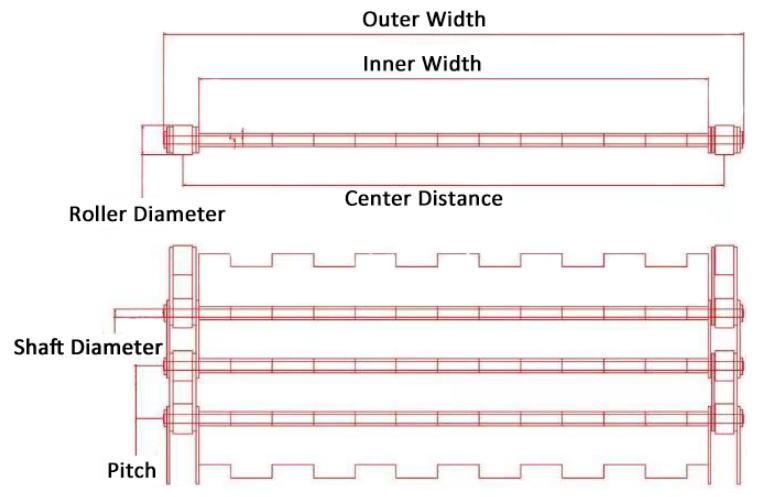

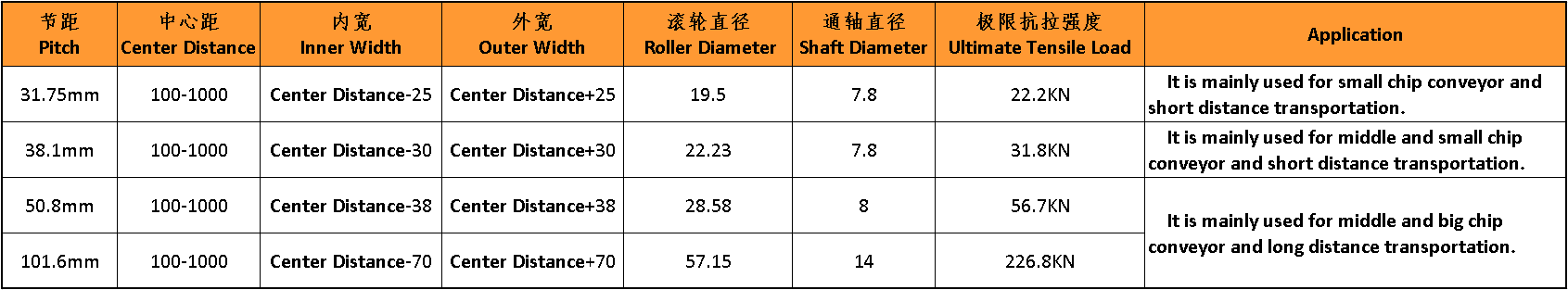

◆Different types of debris removal chian plate are available for use. Their width can be made according to the client requirements. Pitch is 38.1mm with max extension load of 31.8KN. it is mainly used in small-sized machines and short distance transmission. Pitch is 50 Bmm with max. extension load of 56.7KN. Pitch is 101.6mm with max.extension load of 226.8KN. These two types of chain plates are of stronger and reliable structure and suitable tor long distance transmission of large-and medium sized machines and production lines.

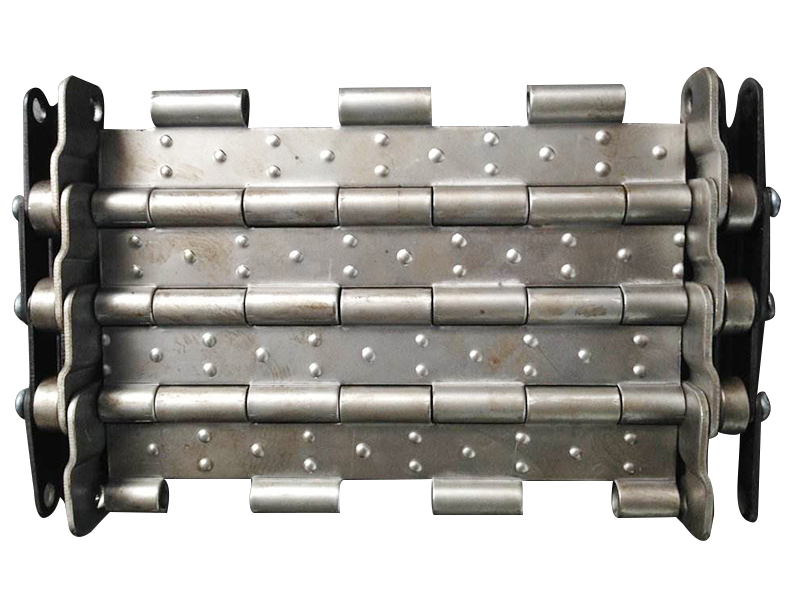

◆Dowel pins of the debris removal chain plate (general type 1) are located at the center of the chain plate. Protrusion of the hinge are the same on both the upper side and the lower side.
◆Dowel pins of the debris removal chain plate (top-lat type I1) are located at the lower side of the chain, featuring fat on the upper side and protruded on the lower side.
◆It is suitable tor transmiting various types long curly debris, bal.shape debris, block-shape debris, copper debris, alumlum debris and stainless steel debris and rubber and nylon materials etc.
◆The structure of the chain plate is of the mult-ball-shape chain plate, which has high strength and is of pertect matching, stable operation, no noises, even wearing and corrosive resistant.
◆Material for the debris removal chain plate can be made available according to the clent requirement, which could be either stainless steel or cold rolled steel plate.
