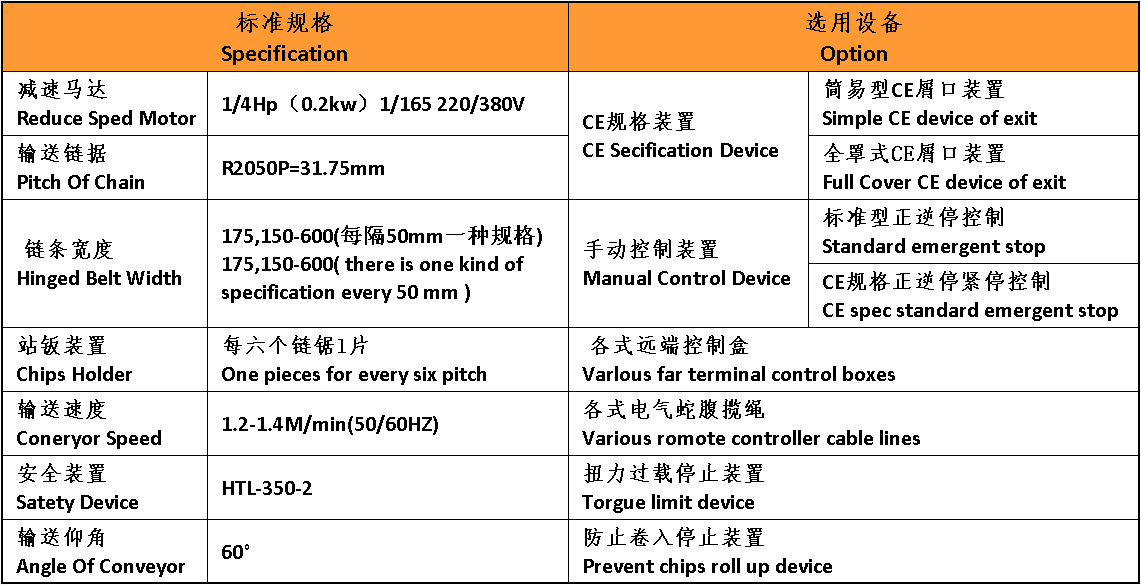

Parameters:
Types of transported chips: chip conveyor is mainly used to collect and transport all kinds of roll shape chips, ball shape chips and block shape chips, as well as copper chips, aluminum chips, stainless steel chips, carbon blocks, nylon and other materials
Conveying speed: the belt lifting form of chip conveyor is especially suitable for chain plate chip conveyor.
The chain plate is made of stainless steel and high-quality carbon steel. The surface can be machined into bumps to prevent the adhesion of fine chips. It has a special structure, which is better suitable for the transportation of chips under bad working conditions. For example, the long strip and large roll shaped chips produced by the threading machine in the steel pipe industry have heavy load and high speed (the running speed is 1-10 M / min), which is especially suitable for the rapid transportation of broken edges (materials) in the steel industry.
Chain pitch: confirm the type of chain according to customer requirements

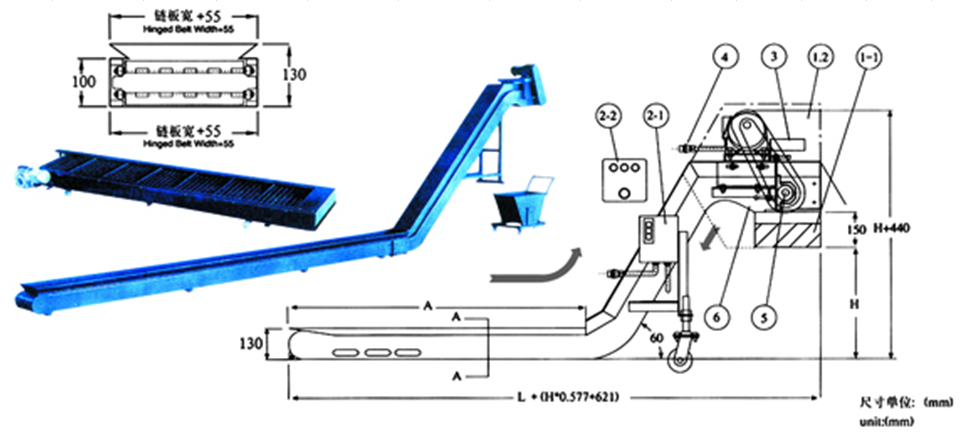

Details of chip conveyors
★Taken the small volume, high efficiency;For CNC, the optimal collocation model of NCS and industry machinery,.
★Taken the chain plate width diversification, provides a flexible and effective application of the perfect collocatio.
★U a integrated chain coin combination, the intensity is high, the matching accuracy, stable and quiet.
★U close convex point desion, which can effectively prevent debris adhesion,increased ablity to trash.
★Taken the torque limit set, effectively reduce the damage caused by improper operation.
Parameters for chain plate
| Pitch | ultimate tensile load | Usage |
| 31.75mm | 22.2KN | Mainly used for small machine and short distance transportation |
| 38.1mm | 31.8KN | Mainly used for middle and small machine and short distance transportation |
| 50.8mm | 56.7KN | Mainly used for large machine and long distance transportation |
| 101.6mm | 226.8KN |
Function:

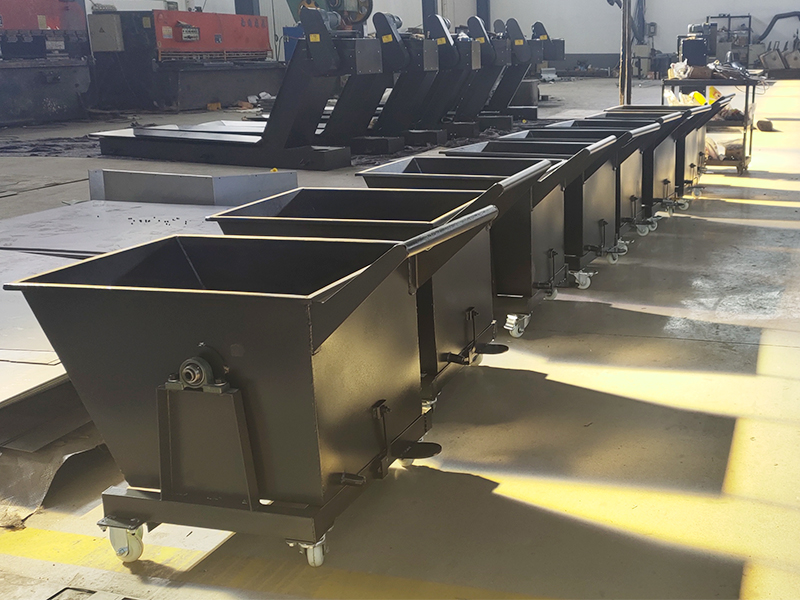

The chip conveyor is mainly used to collect various metal and non-metal waste generated by the machine and transfer the waste to the collection vehicle. It can be used in conjunction with the filter water tank to recycle various coolants. There are scraper type chip conveyor, chain plate chip conveyor, magnetic chip conveyor and screw type chip conveyor.
Chip conveyors, small size, high efficiency; It is the most suitable matching model for CNC, NC and industrial machinery. The chain plate is diversified in width, providing excellent matching flexibility and effective application. The integrated chain plate combination has high strength, accurate coordination and stable and quiet action. The compact bump design can effectively prevent debris from adhering and increase the ability of removing debris. The torque limit setting can effectively reduce the damage caused by improper operation.
